Concept

A Tag Class (Tag) is a virtual Vtrin class used to configure the database to collect and store process data. This article introduces tags and their related functionality and shows how different tools can be used to create tags and to start collecting process history.

Tags are used to define how the data should look in the database. It defines a name and a unique ID for data structures and a data type of stored data.

Tags also define the data source. In the most common cases, it allows configuring OPC DA settings for each tag separately, such as OPC server, item IDs and update rates. In addition, it defines which data collector in the hierarchical node layout is used to collect data.

In addition, Tags also specify how data is further processed: Compressed and preprocessed before storing it in the database, and what kind of upper-level histories (secondary logs) are collected from raw history (current history). An example of upper-level histories would be averages calculated over one minute, hour, or day.

Behaviour

Important aspects from Tag:

• The only unique identifier of the Tag is the ID property (the type of ID is GUID). This makes it possible to create tags in distributed environments without name clashes.
• The creator of a Tag can propose a name for the Tag. If the proposal name is unique within the local node, it is accepted as-is. Otherwise, there is a renaming algorithm to ensure name uniqueness. The name of the Tag can be changed later on by setting a new "ProposedName". The "DisplayName" property shows the actual name after the uniqueness algorithm has been applied.
• Once a tag is deleted, the references to already stored data will be lost. Although historical data is not deleted, it is impossible to refer to and access it. Despite a new tag being created with the same property values, it is a new tag. The old history data will not be found.
• In a hierarchical node layout, it is up to "RTDB-TagConsistencyController" to propagate tag definitions between the main node and DCNs. It has to be created manually in only one node.
• Implementing class instances should never be deleted manually behind the Tag, as this breaks the Tag instance (e.g., an associated variable should not be deleted alone). Deleting a tag instance using Vtrin is acceptable, however, as it is able to clean the associated instances and references.
• All tag instances are independent of each other.

Relations between classes

The Tag class is used to populate data collection in single node systems, but there is built-in support to easily configure all nodes in a hierarchical system layout as well. Figure below illustrates how "RTDB-TagConsistencyController" handles the configuration in a hierarchical node layout.

Each tag can be either redundant or non-redundant. A single data collector can contain both redundant and non-redundant tags.

Tag definitions

The complete definitions of all the properties in the Tag class may be found in the tables below.

Tags for Redundant data collection

For the Tags where redundant data collection is supported the properties to consider are listed on the table below.

Creating a tag creates a variable

Creating a Tag creates a Variable as well. The Tag class extends the Variable class with some additional functionality. In addition to just extending the functionality of Variable, the Tag class also hides some details from the Variable class. In cases where some functionality is only available in the Variable class, the user might want to fine-tune the behavior by accessing the Variable properties directly.

In addition, sometimes, the user wants to create variable instances without creating a tag instance. A typical example of this would be variables used in C# calculations. In case the calculation is producing data to a variable, it might make sense to only create a variable without a tag, in order to get as lightweight a solution as possible.

Next we will discuss variable definitions and how these can be configured in Engineering UI.

Variable

A variable is a named location where you can store a single value in the RTDB database. When creating a new variable, a user defines the variable value type, its maximum and minimum value etc and can connect the newly created variable to a data source.

In ABB Ability™ History, every variable has a CurrentValue property (among many other properties). The value of that CurrentValue property is updated at intervals and can be plotted into a trend chart. Often, the source of the value is devices or sensors that produce data continuously and are connected to ABB Ability™ History RTDB database using the OPC DA protocol.

However, a variable has its limitations because it is a flat list of historized values and the preferred way to store historized value in industrial settings is in a hierarchical way.

Configuring variables in Engineering UI

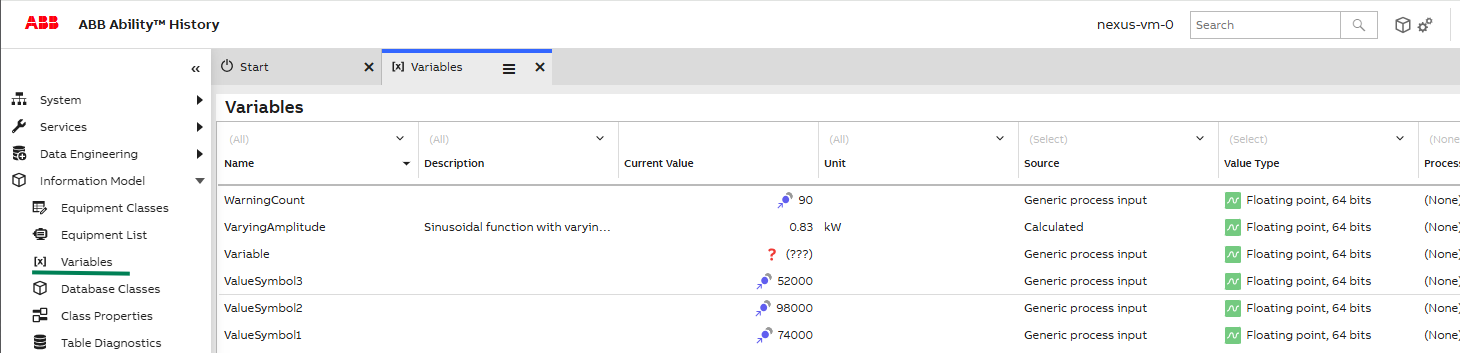

Variables display can be found under Information Model folder. This display shows a list of created Variables. You may modify the already existing ones or create new variables from the Edit button at the bottom. Remember to commit changes to save them.

The table below gives further information on how to define a new variable.
